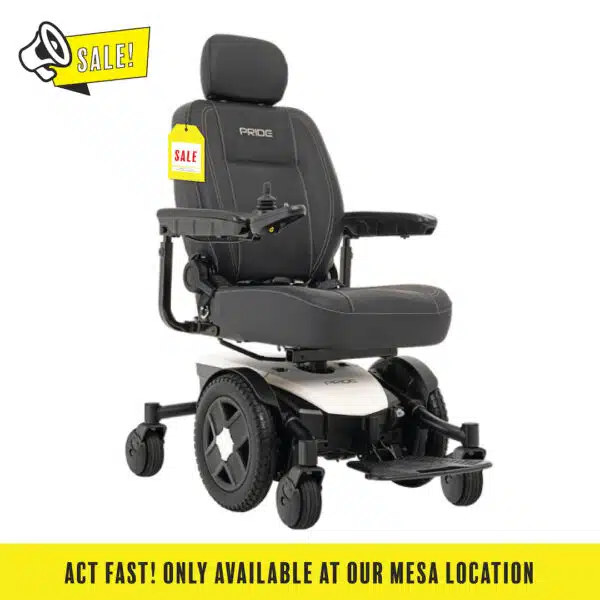

Pride Jazzy EVO 613, White – Mesa Location

Specs/Technical Features

• Model: Jazzy® EVO 613/ Jazzy® EVO 613 Li
• Weight Capacity: 300 lbs.
• Turning Radius: 22″
• Width: 22″
• Length: 41″ w/footplate, 35″ w/o footplate
• Maximum Speed: Up to 5.1 mph
• Ground Clearance: 3″ at motor bracket
• Front Wheels: 5″ solid
• Drive Wheels: 13″ solid
• Rear Wheels: 5″ casters
• Drivetrain: Two-motor, in-line, mid-wheel drive
• Braking System: Regenerative and electromechanical
• Suspension Type: Active-Trac® (ATX)
• Standard Seat Sizes: High-back, Black vinyl
• Seat Sizes Available: 16″x16″-18″, 18″x18″-20″, 20″x18″-20″
• Seat-to-Floor Range: 19.75″-21.25″
• Seat Weight(s): 46 lbs. (16″), 48 lbs. (18″), 50 lbs. (20″)
• Maximum Seat Size: 20″x20″
• Power Elevating Seat: NA
• Standard Electronics: 40A, PG GC3
• Battery Size(s): (2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate
• Battery Weight: (2) U1-23.5 lbs. each; (1) Lithium – 18.5 lbs.
• Battery Charger: 3.5A, off-board
• Per Charge Range: SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200 lbs.); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200 lbs.)
• Weight of Heaviest Piece: 94 lbs. (base)
• Total Weight: 189 lbs. (SLA); 160.5 lbs. (Lithium)
• Warranty: Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium)
